What Is a Radial Flap Disc and How Does It Work?
When working with metal, the right abrasive can make a big difference. Whether you are removing welds, cleaning edges, removing surface imperfections or preparing metal for the next finishing process, choosing the right disc helps you get better results with less effort.
A radial flap disc is a versatile coated abrasive designed for grinding, deburring, blending and surface finishing. It is made using multiple abrasive flaps arranged around the disc, giving it a flexible working surface that can adapt to different metal surfaces.
At Flap Craft, our radial flap discs are available in different diameters, grits and abrasive materials to suit a wide range of metalworking applications.
What Is a Radial Flap Disc?
A radial flap disc is an abrasive disc made from several overlapping abrasive flaps positioned around a central hub.
Unlike a conventional abrasive disc with one continuous grinding surface, a flap disc has individual abrasive flaps. As the disc is used, the abrasive grains on the working surface wear away, and fresh abrasive grains are exposed.
This allows the disc to maintain its cutting and finishing action during use.
In simple words, a radial flap disc combines material removal and surface finishing in one abrasive tool.
It can be used for applications such as:
- Weld removal and weld blending
- Deburring sharp edges
- Surface preparation
- Removing surface imperfections
- Blending metal surfaces
- General metal grinding
- Finishing and smoothing
How Does a Radial Flap Disc Work?
When the disc rotates against a metal surface, the abrasive grains on the flaps remove small amounts of material.
The individual flaps provide multiple contact points with the workpiece. As the abrasive grains wear during operation, new abrasive material underneath becomes exposed.
This helps provide a relatively consistent cutting action throughout the life of the disc.
The flexible nature of the flaps also allows the abrasive to follow the surface better than a rigid grinding wheel in many finishing applications. This makes radial flap discs particularly useful when you need to remove material while also improving the surface finish.
For example, after welding a metal component, you may need to remove excess weld material first and then blend the area into the surrounding surface. A suitable flap disc can help with both stages.
What Are Radial Flap Discs Used For?
The biggest advantage of a radial flap disc is its versatility.
Weld Removal and Weld Blending
Welding often leaves excess material and visible weld marks on the workpiece.
A suitable radial flap disc can remove excess weld material and gradually blend the weld area with the surrounding metal.
This is especially useful in fabrication and manufacturing where the final appearance of the metal is important.
Deburring
Cutting, drilling and machining can leave sharp edges and burrs.
A radial flap disc can help remove these unwanted edges and prepare the component for the next stage of production.
Surface Preparation
Before painting, coating or further polishing, a metal surface may need to be cleaned and evened out.
A flap disc can help remove surface imperfections, oxidation, marks and unwanted material to create a more consistent surface.
Surface Blending
If a particular area of metal has been ground, welded or repaired, you may need to blend it with the surrounding surface.
A flap disc gives you better control for this type of work, particularly when compared with very aggressive grinding methods.
Metal Finishing
With a finer grit, radial flap discs can also be used for smoothing and refining metal surfaces before moving on to a finer polishing or finishing process.
Choosing the Right Grit for a Radial Flap Disc
Grit selection is one of the most important parts of choosing an abrasive.
Generally, coarser grits remove material faster, while finer grits are better suited for smoothing and finishing.
Flap Craft radial flap discs are available in:
- 60 grit – Suitable for more aggressive material removal and grinding.
- 80 grit – A good option for general grinding and blending.
- 120 grit – Suitable for smoother blending and intermediate finishing.
- 180 grit – Useful for finer surface finishing.
- 220 grit – Designed for fine finishing where a smoother surface is required.
The ideal grit depends on the material, the amount of material you need to remove and the final finish you want.
A simple rule is:
More material removal → coarser grit
Smoother finish → finer grit
Aluminium Oxide vs Zircon Radial Flap Discs
The abrasive material also affects the performance of a flap disc.
Aluminium Oxide
Aluminium oxide is a versatile abrasive grain commonly used for general metalworking applications.
It can be a practical choice for grinding, deburring, blending, and general surface finishing.
Zircon
Zircon, commonly referred to as zirconia abrasive, is suitable for more demanding applications where higher cutting performance and abrasive durability are required.
It can be particularly useful for heavier grinding and weld-related applications.
So, there isn't one abrasive material that is best for every job. The right choice depends on the material being worked on and the level of material removal required.

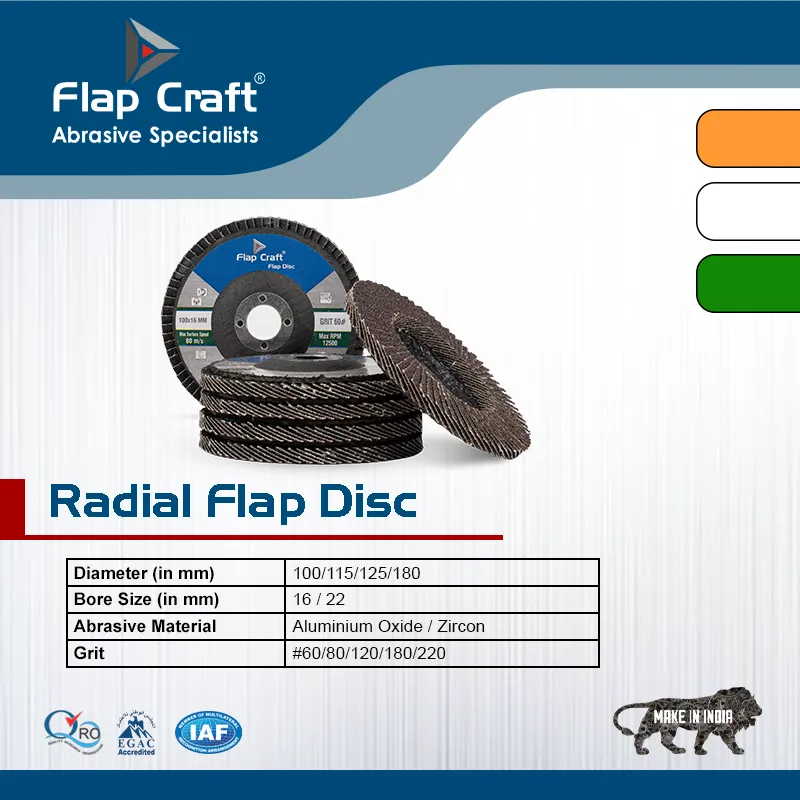

Radial Flap Disc Sizes Available at Flap Craft
Different machines and applications require different disc sizes.
Flap Craft radial flap discs are available in:
- 100 mm
- 115 mm
- 125 mm
- 180 mm
They are available with 16 mm and 22 mm bore sizes.
Always make sure the disc diameter, bore size and machine are compatible before use.
How to Choose the Right Radial Flap Disc
Before selecting a radial flap disc, consider these four things:
1. What material are you working on?
The material of the workpiece affects the abrasive you should choose.
2. What is the application?
Are you removing a weld, deburring an edge, blending a surface or creating a finer finish?
3. What finish do you need?
Choose a coarser grit when material removal is the priority and a finer grit when surface finish is more important.
4. Which abrasive material is suitable?
Choose between aluminium oxide and zircon according to the application and required cutting performance.
Choosing the right combination can improve both the quality of your finish and the overall efficiency of the job.
Radial Flap Disc vs Grinding Wheel
One common question is whether a flap disc can replace a traditional grinding wheel.
Both have their place.
A traditional grinding wheel can be useful when aggressive material removal is the main requirement. A flap disc is often preferred when you need to remove material, blend the surface and leave a more refined finish in the same operation.
For fabrication and metal finishing work, this can reduce the need to switch between different abrasives during the job.
Frequently Asked Questions
Q- What is a radial flap disc used for?
Ans- A radial flap disc is commonly used for metal grinding, weld removal, weld blending, deburring, surface preparation and finishing.
Q- Which grit is best for a radial flap disc?
Ans- It depends on the application. Coarser grits such as 60 and 80 are generally suitable for more aggressive grinding, while 120, 180 and 220 are better suited to smoother finishing applications.
Q- Are radial flap discs good for weld removal?
Ans- Yes. A suitable radial flap disc can be used for removing excess weld material and blending the weld with the surrounding metal.
Q- What is the difference between aluminium oxide and zircon flap discs?
Ans- Aluminium oxide is a versatile option for general metalworking, while zircon abrasive is generally selected for more demanding material removal and applications requiring higher abrasive durability.
Q- What sizes are available in Flap Craft radial flap discs?
Ans- Flap Craft radial flap discs are available in 100 mm, 115 mm, 125 mm and 180 mm diameters, with 16 mm and 22 mm bore sizes.
Q- What grits are available?
Ans- Flap Craft radial flap discs are available in 60, 80, 120, 180 and 220 grit.
Get the Right Finish with Flap Craft
A radial flap disc is more than just a grinding disc. With the right grit and abrasive material, it can help with material removal, deburring, weld blending, surface preparation and finishing.
Flap Craft radial flap discs are available in aluminium oxide and zircon, with multiple grit and size options to help you choose the right abrasive for your application.
Choose the right abrasive. Get better control. Achieve a better finish.
